Project Description

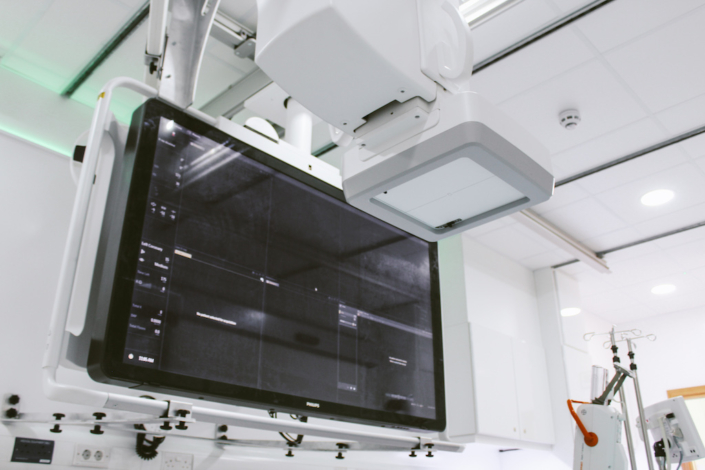

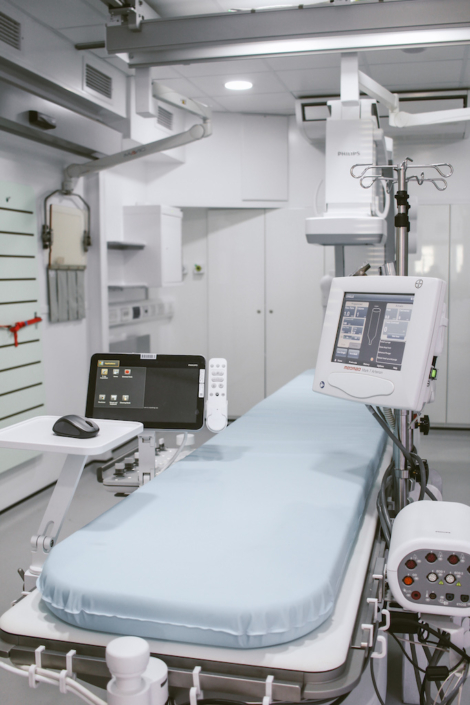

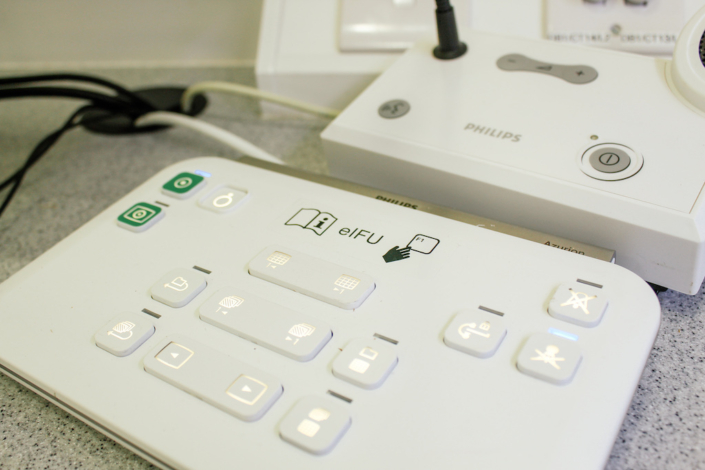

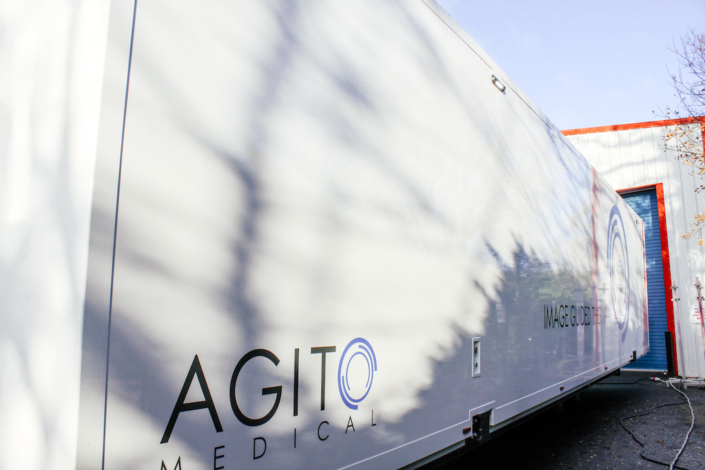

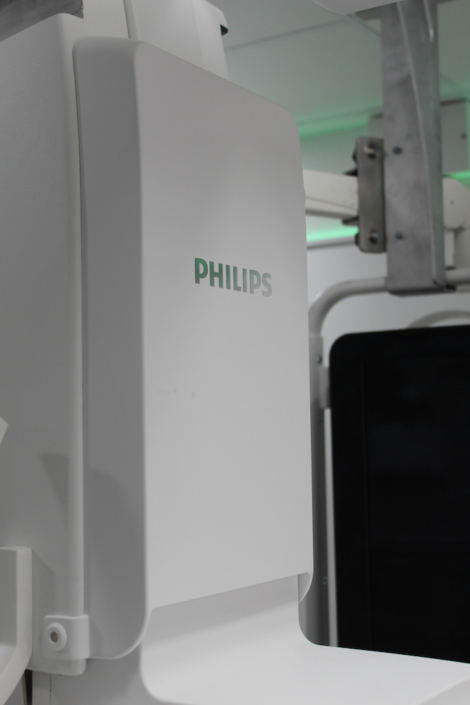

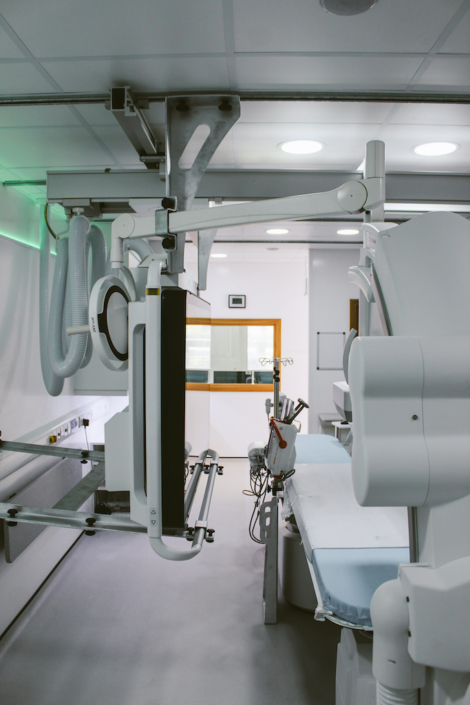

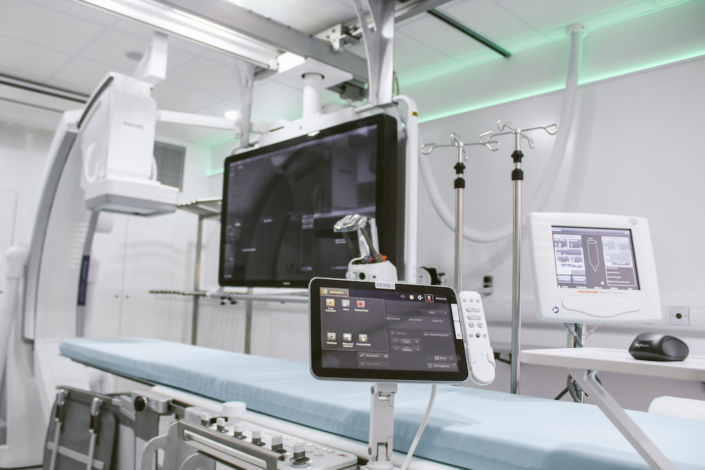

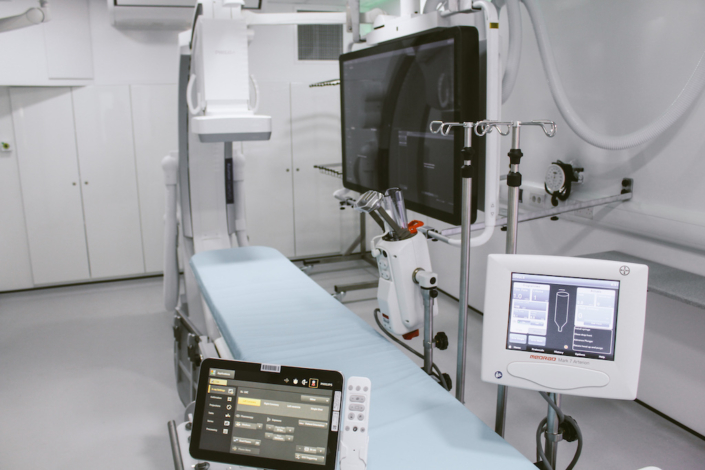

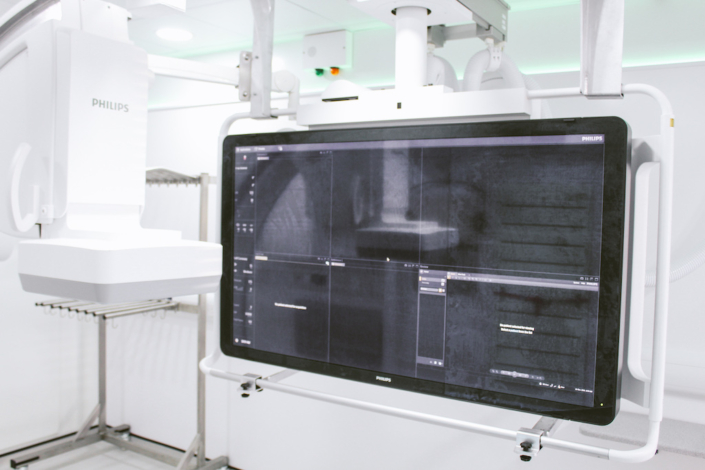

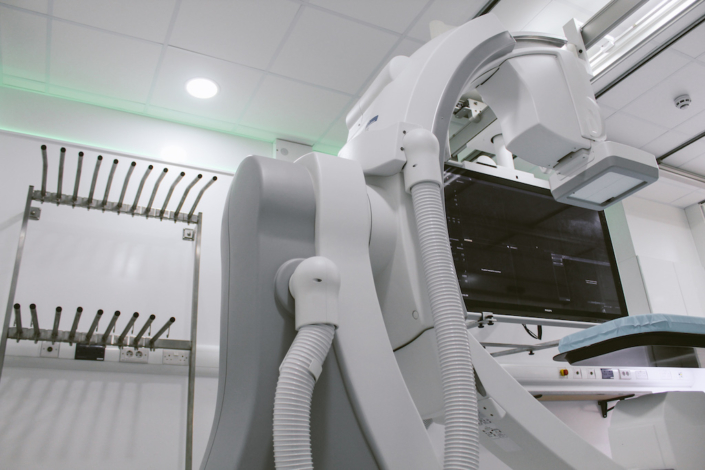

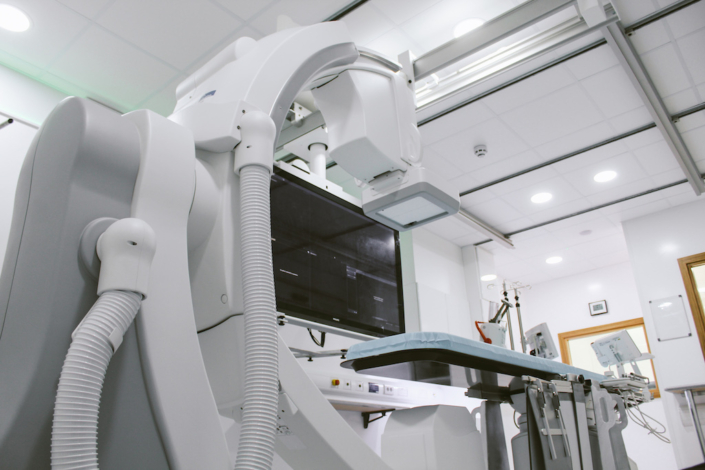

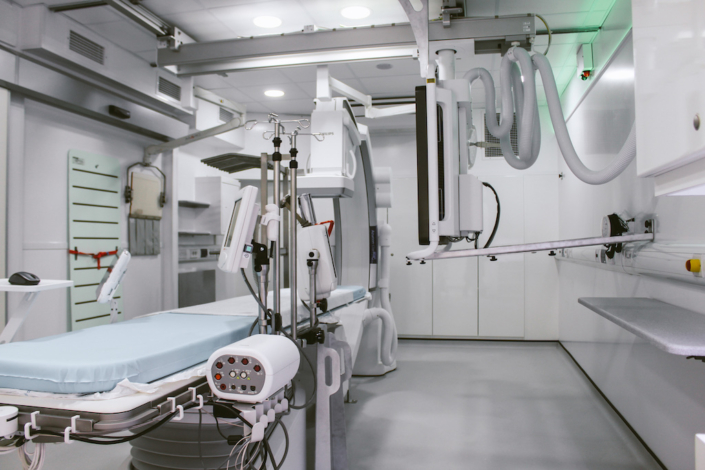

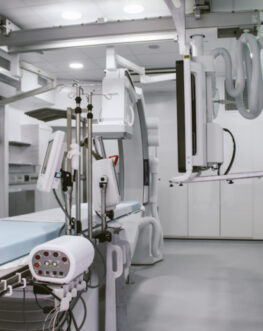

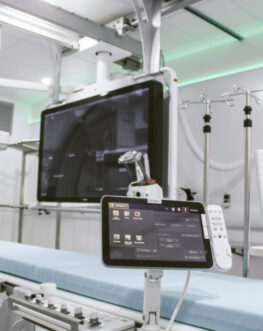

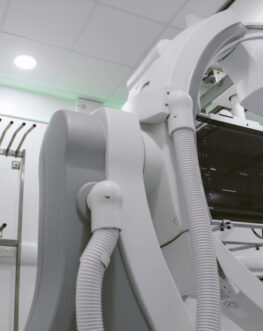

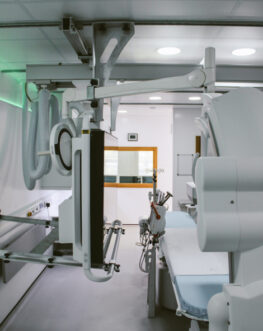

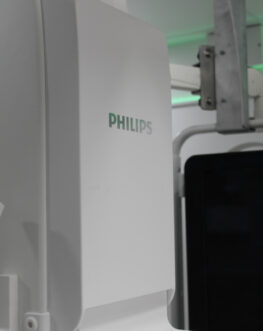

The latest Relocatable Cath Labs manufactured by WH Bence for Agito were designed and manufactured with the latest Philips Azurion 12 equipment. The relocatable design offered the ability to meet the Philips planning guide requirements for ceiling heights, ceiling width and room lengths, allowing the relocatable to be used for a variety of Cardiac procedures.
To allow flexibility with deployment, Bence integrated their latest hydraulic deployment design with four integrated hydraulic legs capable of lifting the 27 Tonne body from the transport trailer. This allows quick and easy deployment as well as reducing high craneage costs. In the event the unit does require crane lifting, we have fully tested lifting bracketry allowing the unit to be lifted with four points into position.
“Bence integrated their latest hydraulic deployment design with four integrated hydraulic legs capable of lifting the 27 Tonne body from the transport trailer.”
Key points
Project Highlights
-
Lifting & Installation
Integrating hydraulic legs for easy deployment while also designing and testing lifting bracketry for crane installation added complexity to the manufacturing process.
-
Environmental Resistance and Material Durability
The choice of an anti-corrosive co-polymer material was essential, but working with this material posed challenges in ensuring durability, flexibility, and optimal tank integration.
-

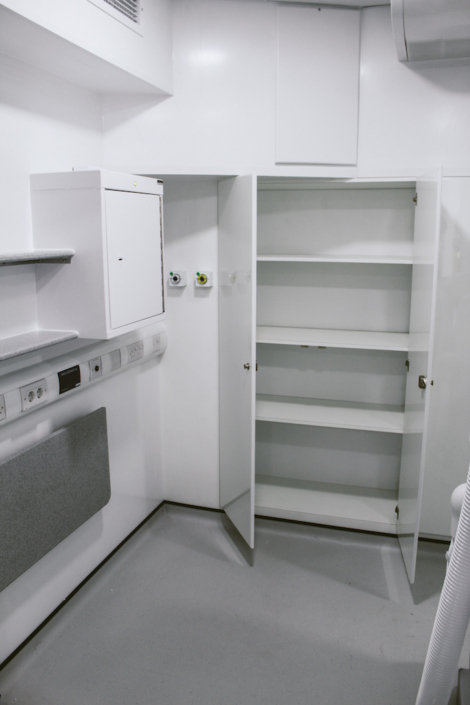

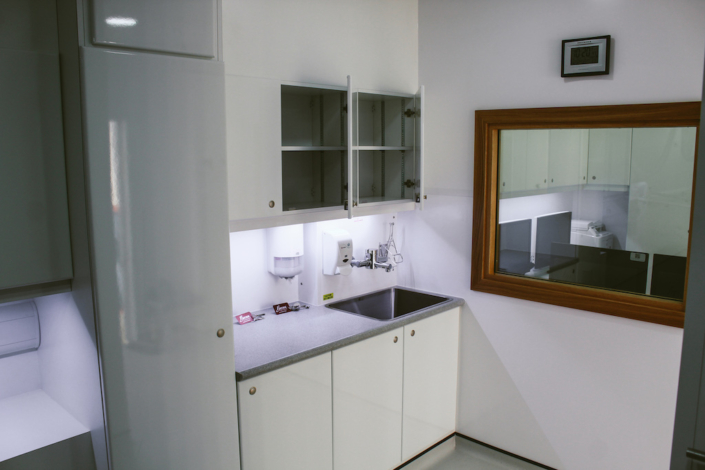

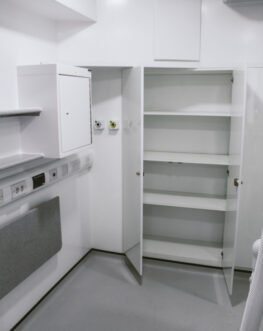

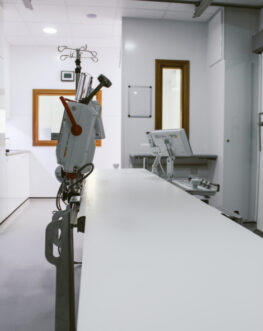

Interior Workflow & Safety

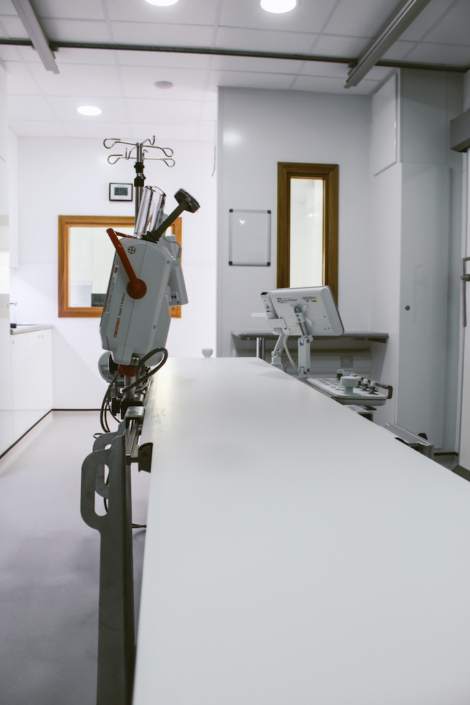

Balancing flexibility in procedural use with efficient staff movement, while incorporating fire and radiation protection through the Dortek sliding door.
A bespoke air handling unit was designed to provide the air pressures and air change rates required to meet clinical requirements. The specialist design incorporated the latest remote monitoring system to protect the unit when unoccupied. The air handling unit is designed to meet the UK climatic conditions it will face and is designed to be compact while still compliant to fit in the available space on the Cath Lab design.
We were delighted to work with Agito to create this latest Cath Lab system and we currently offer them UK support with service and maintenance for all Bence built facilities.
